Ultra large stroke three coordinate system, ideal choice for measuring large components of new energy vehicles
Model：
18.22.10 18.30.10 18.22.12 18.30.12 18.22.15 18.30.15 20.33.10 20.33.12 20.33.15

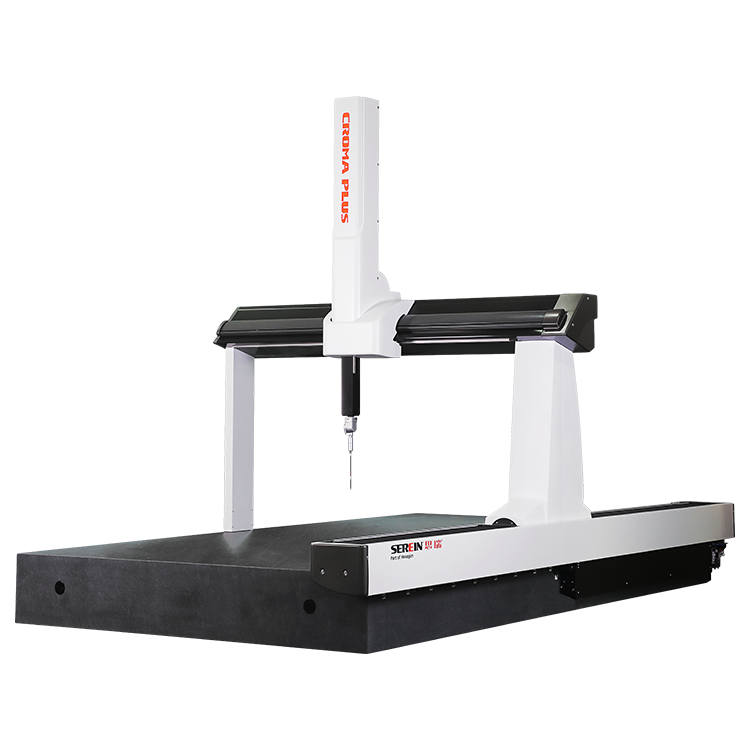

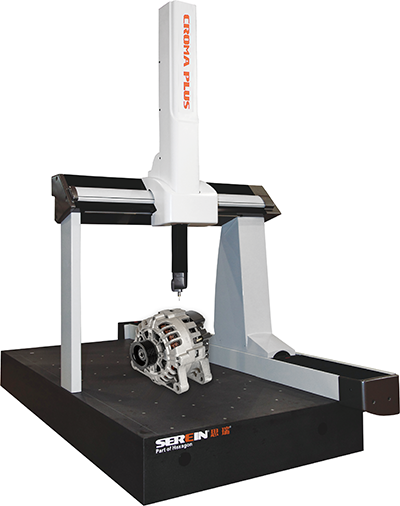

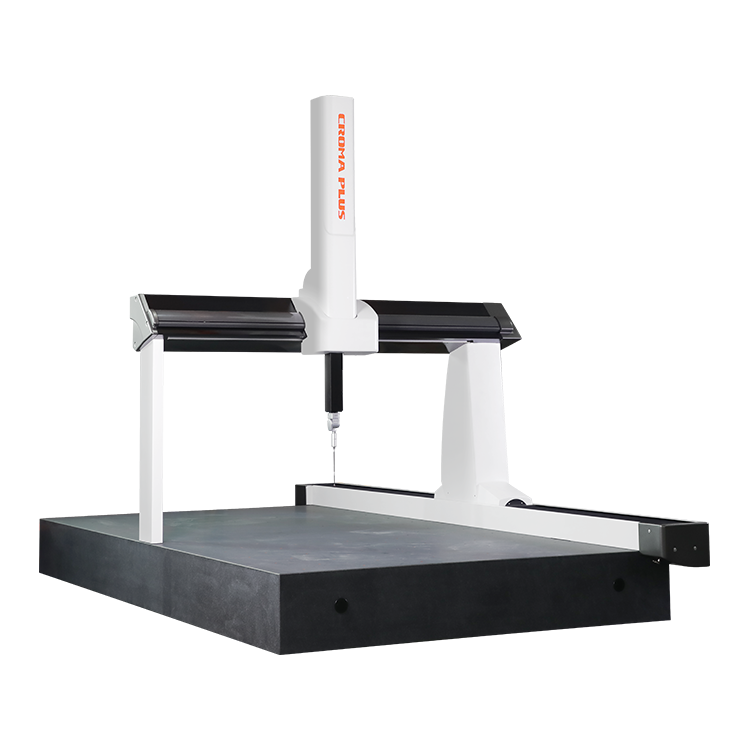

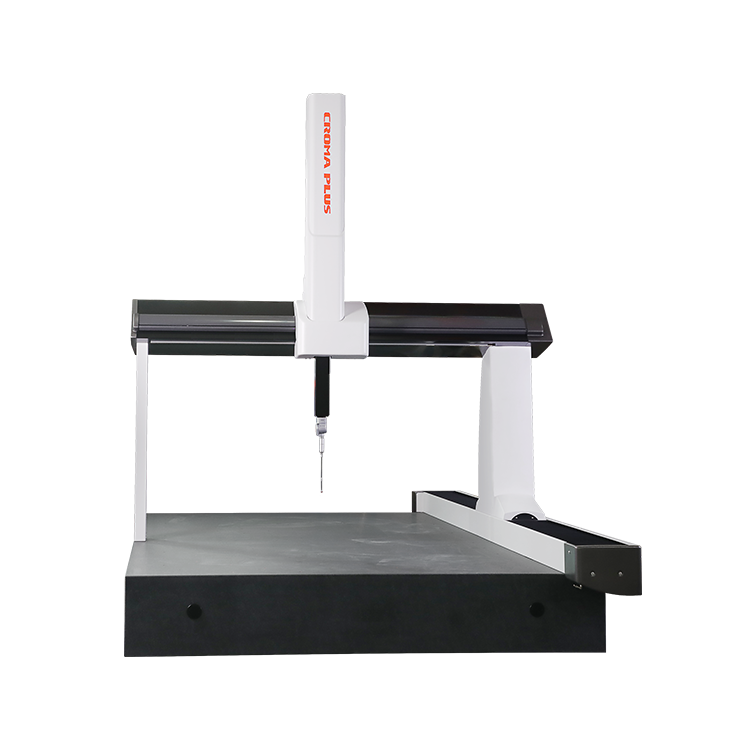

The CROMA PLUS brand new large and high-precision movable bridge type long stroke measuring machine adopts a movable bridge structure, and the maximum measurement stroke can be: 2000X4500X1500mm (special sizes can be customized), which is rare in the domestic industry; It can fully cover the detection of battery boxes, covers, and measuring brackets of various sizes and types

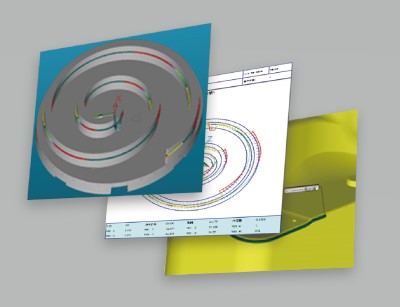

The PC-DMIS scanning module, combined with the Hexagon X1 two in one sensor (scanning and triggering), can perform surface scanning on the workpiece, completing 100 point acquisition in seconds, and improving efficiency several times.
· DCC Scanning module

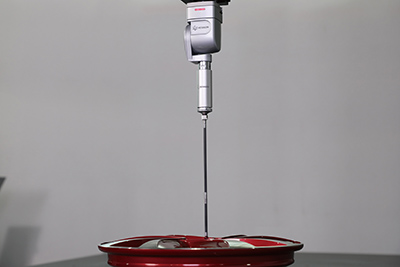

· The length of the measuring needle can reach up to 225mm, making it convenient for deep hole measurement;
· Equipped with a small scanning probe with a diameter of only 30mm, it has anti-collision protection function;
· Measurement accuracy Starting from m2.0μm；
CROMA PLUS provides a high-performance control system for the stable and reliable three-axis mechanical structure of Sirui. It is equipped with a widely recognized Hexagon scanning probe as standard, which has high measurement accuracy and greatly improves the measurement efficiency of the equipment.
The all-new Croma inherits the classic design of an all aluminum frame, 60 ° precision triangular crossbeam, and integral dovetail X-way guide rail. The Croma Plus exudes inherent professionalism, achieving a seamless and smooth pleasure. The group's global supplier platform and standard process flow jointly ensure every detail.
The CROMA PLUS active bridge type large stroke measuring machine has high accuracy and speed, and is suitable for enterprises with high standard requirements for the manufacturing accuracy of large workpiece products, such as new energy batteries, automotive molds and gauges, large precision manufacturing parts, and applications in the wind power industry; It is the best choice for parts weighing less than 8 tons. The equipment installation conditions are simpler and easier to move than gantry measuring machines. In addition, the cost of measuring rooms and foundation construction is much lower than that of gantry measuring machines; Significant innovation advantages,

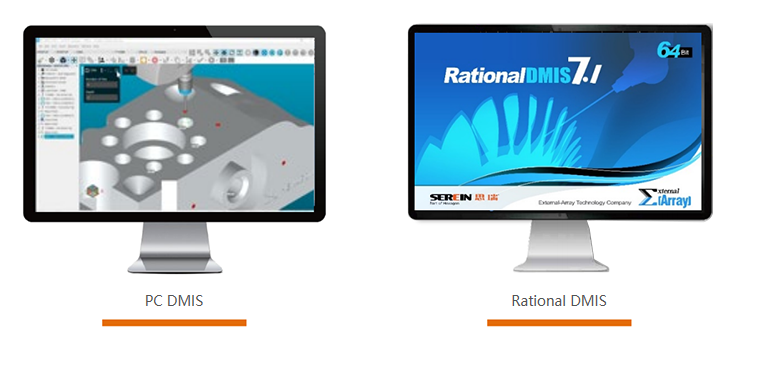

PC DMIS has long led the development of software application technology in the metrology industry with its professional measurement technology, continuous technological innovation, simple operation functions, and extensive compatibility. More than 600000 people worldwide use PC-DMIS, which has become a commonly used measurement software in the industry.
Rational DMIS software has been highly praised by CMM industry experts for its intuitive, powerful, and efficient features, and has also won the trust of users in industries such as automobiles, airplanes, engines, ships, and molds. In 2018, Hexconn acquired Rational DMIS software to provide more software options for measurement, especially its powerful customization functions, providing enterprises with services that are more tailored to customer needs.
