Sirui provides fully automatic coordinate measuring machines, workshop coordinate measuring machines, gantry coordinate measuring machines, and manual coordinate measuring machines to meet the precision measurement needs of multiple fields.
High quality selection for measuring large and oversized workpieces in aerospace, mold, and component manufacturing.
Model：
20.33.10 20.33.15 20.50.15 25.33.15 25.50.15 25.33.18 20.50.18
Based on the Group's more than 150 years of experience in the gantry measuring machine system, the Functions Plus series gantry measuring machines have condensed the essence of the design and manufacturing technology of the gantry measuring machine. The overall accuracy is stable and reliable for a long time. Function Plus also has the efficiency and flexibility required by modern manufacturing. The Functions Plus series gantry measuring machine is a high-quality choice for measuring large and oversized workpieces in aerospace, mold, and component manufacturing.
An international research and development team with rich experience, launched the electronic control gantry crane in 1963; A globalized supply chain platform and standardized production verification process ensure reliable machine accuracy; Pre factory testing and acceptance of constant temperature control to ensure that each machine is in good condition before shipment;
 |  |
1. High precision triangular beam technology The crossbeam adopts widely validated inclined roof technology, resulting in better system rigidity and dynamic performance. | 2. Precision long guide rail The precision long guide rail is made of highly stable granite material, providing a good foundation for the accuracy of the entire machine. |
 |  |
3. Heiden-hain Grating Each axis of the machine adopts high-resolution, anti-interference, and wear-resistant Heiden hain gold-plated gratings, with a temperature expansion coefficient certified by PTB. | 4. Steel wire reinforced synchronous belt The X and Z direction transmission adopts a steel wire reinforced synchronous belt, combining flexible meshing with rigid axial transmission to ensure precise positioning. |
 |  |
5. Adjustable pneumatic balance The Z-axis adopts adjustable pneumatic balance, which can automatically brake in emergency situations, ensuring the safety of the measuring machine. | 6. Precision compensation technology Improve the performance of the system by equipping it with linear temperature compensation. |
 | |
7. Remote placement of drive motor Adopting a professional control system ensures the dynamic performance and measurement accuracy of the machine. |

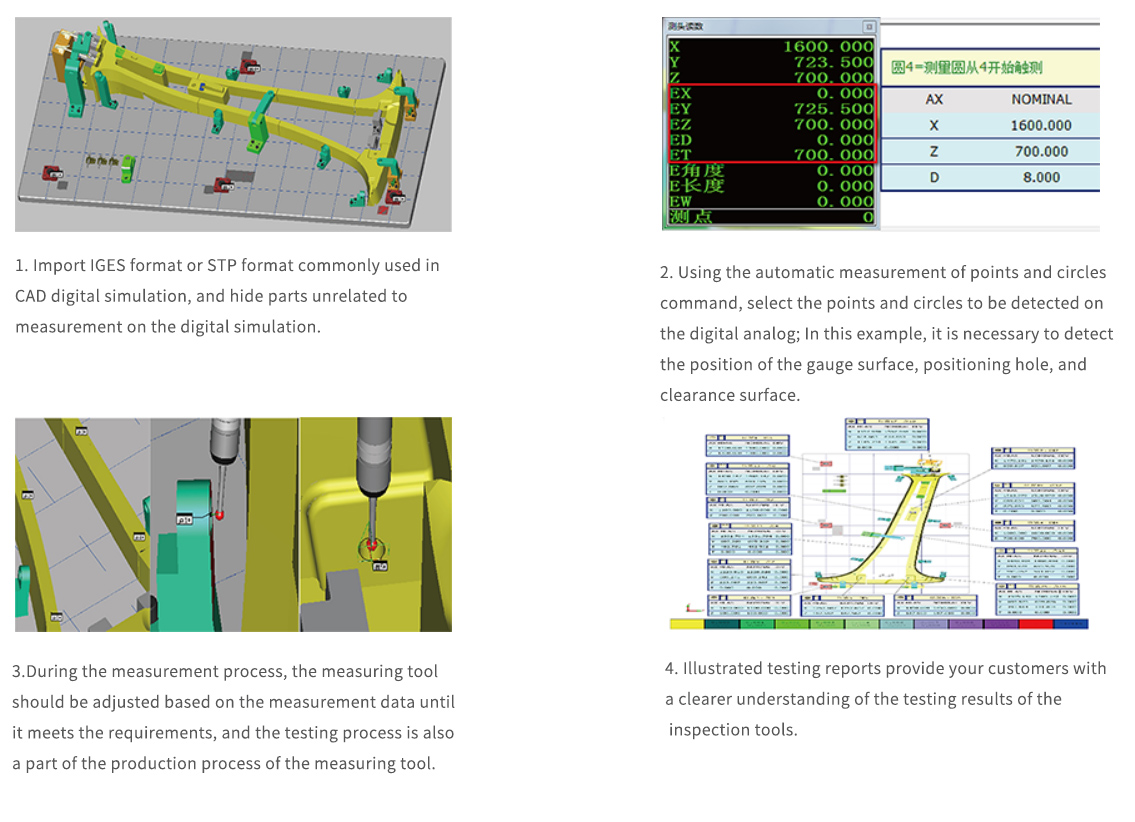

For the testing of large and medium-sized inspection tools, over a hundred inspection tool customers choose Serein
Function Plus the gantry three coordinate measuring machine has high accuracy and large travel, and can complete the inspection and assembly inspection of the inspection tool assembly (including the car side wall and chassis). Alternatively, a cast iron platform can be used as a fixture assembly platform, where measurements can be made while assembly adjustments are made directly on the platform.

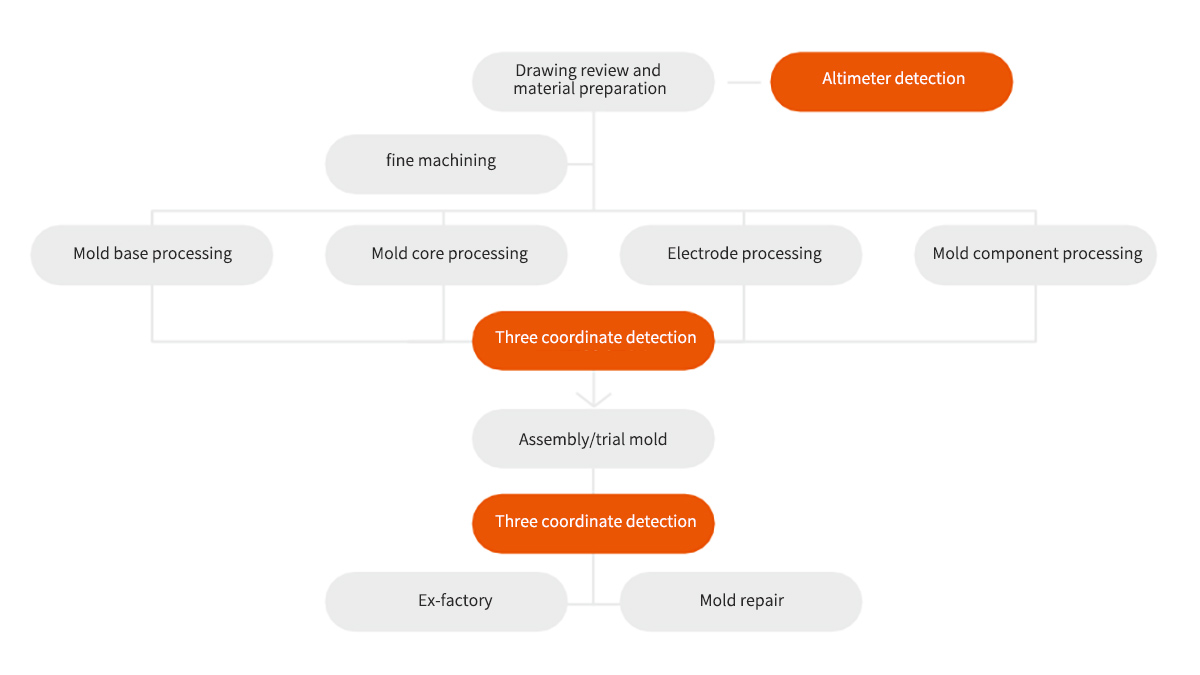

The quality of molds affects the quality level of the entire processing industry. Sirui Measurement is committed to the measurement technology and application innovation in the field of mold manufacturing, using contact and non-contact measurement technology, large gantry machine measurement, and flexible on-site measurement systems to meet the diverse needs of users in the mold industry. Among them, the Function Plus gantry machine provides professional testing solutions for large mold base cores.
PC DMIS With its professional measurement technology, continuous technological innovation, simple operation functions, and extensive compatibility, it has long led the development of software application technology in the measurement industry. More than 600000 people worldwide use PC-DMIS, which has become a commonly used measurement software in the industry.
Rational DMIS software has been highly praised by experts in the CMM industry for its intuitive, powerful, and efficient features, and has also won the trust of users in industries such as automobiles, airplanes, engines, ships, and molds. In 2018, Hexconn acquired Rational DMIS software to provide more software options for measurement, especially its powerful customization functions, providing enterprises with services that are more tailored to customer needs.
