Sirui provides composite imaging measuring instruments, fully automatic imaging measuring instruments, specialized imaging instruments, and manual imaging instruments to complete measurement tasks for complex components such as small, thin, soft, and light in different scenarios.
Patented dual Z-axis composite measurement technology, achieving measurement accuracy within the submicron range, creating a new technological high in image precision measurement

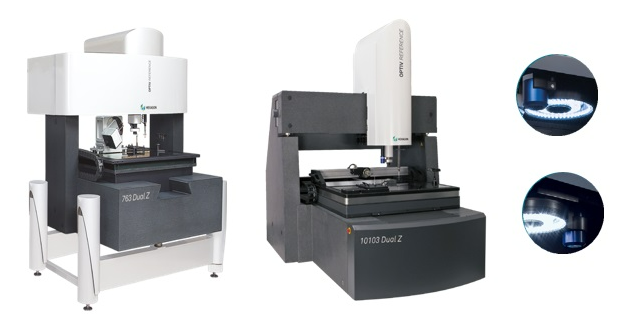

Model：OPTIV REFERENCE 5.4.3 OPTIV REFERENCE 7.3.6 OPTIV REFERENCE 10.10.3 OPTIV REFERENCE 5.4.3 Dual Z OPTIV REFERENCE 7.6.3 Dual Z OPTIV REFERENCE 10.10.3 Dual Z

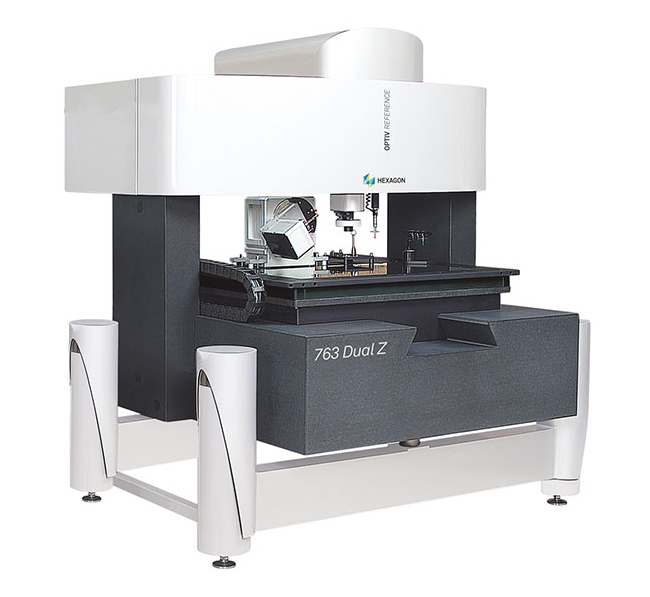

The OPTIV REFERENCE series ultra high precision composite 3D image measurement system is the most accurate multi-sensor product among the HEXAGON image measurement instruments. All shafts are equipped with air bearings, with measurement accuracy within the submicron range. The machine can be equipped with a revolutionary OPTIV dual Z-axis design, which reduces setup and detection time by installing trigger and optical sensors on two independent vertical axes.
? Various sensors, trigger contact probe, continuous scanning probe and probe replacement rack, CWS confocal white light sensor, precision turntable；
? Flexible optical lens selection: electric zoom lens, patented 2-Step Zoom；
? Full granite structure, Y-axis guide rail adopts precision V-shaped dovetail guide rail design；
? REFERENCE series models have a fixed bridge structure and a mobile workbench structure；
? Precision ball screw with central drive effectively reduces Abbe error；
? Fixed bridge ultra high precision 3D composite image measurement system；
? Perfect pneumatic balance and optimized air bearing distribution；
? Equipped with industrial grade high-definition black and white CCD cameras；
? Coaxial light, transmitted light, multi segment surface annular light；
? Patented dual Z-axis design (Dual Z model)；
? Equipped with PC-DMIS VISION software.
