Sirui provides composite imaging measuring instruments, fully automatic imaging measuring instruments, specialized imaging instruments, and manual imaging instruments to complete measurement tasks for complex components such as small, thin, soft, and light in different scenarios.
High resolution telecentric optical lens, combined with high-precision image analysis algorithms, precise flash testing with one click, dedicated to rapid detection of small components in batches.

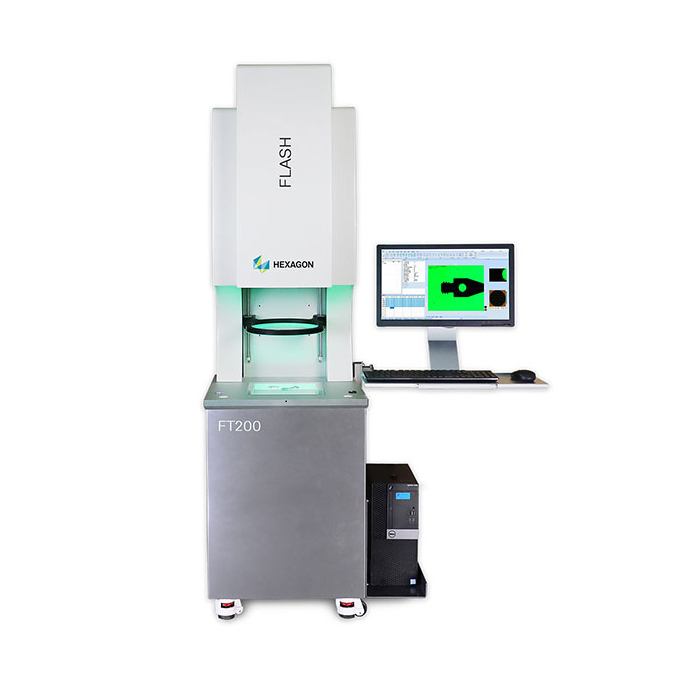

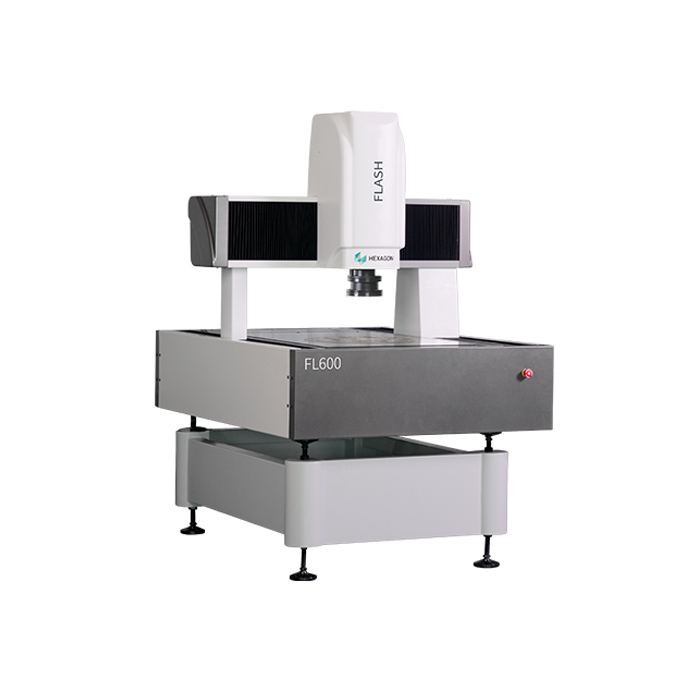

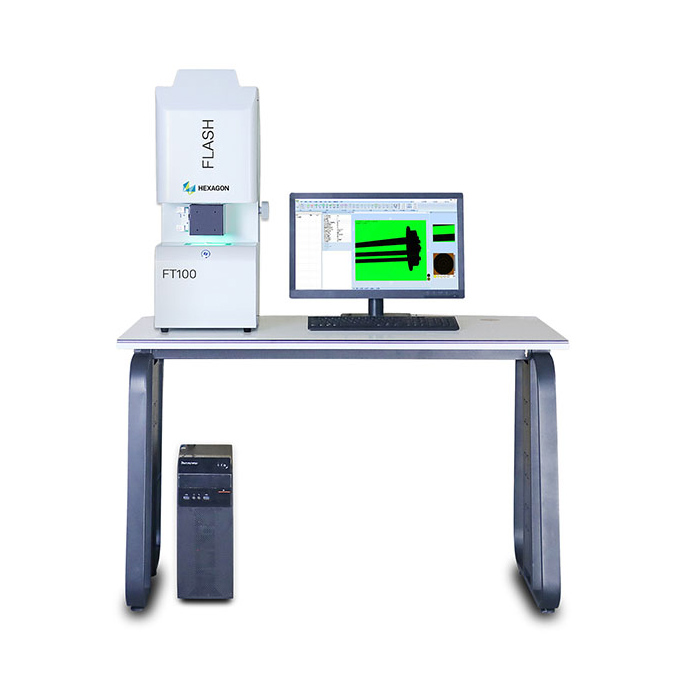

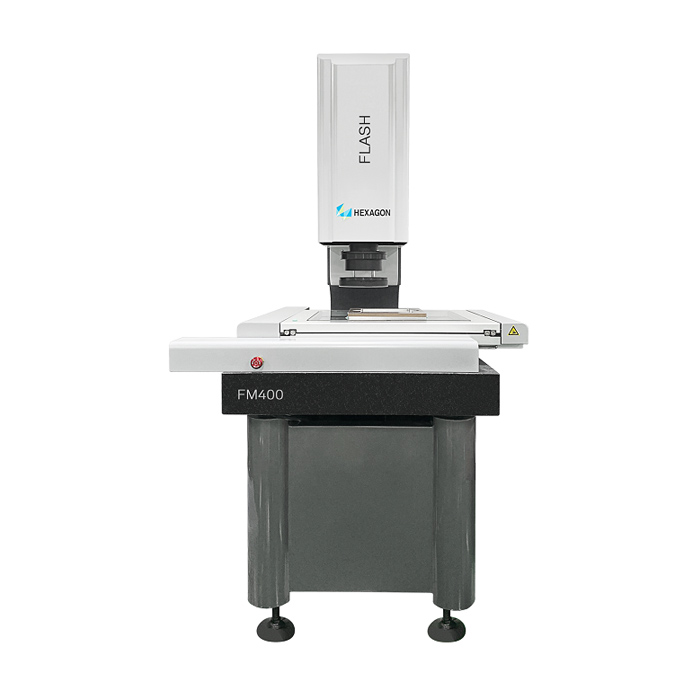

Model：FT 100 FT 200 FM300 FM 400 FL 600

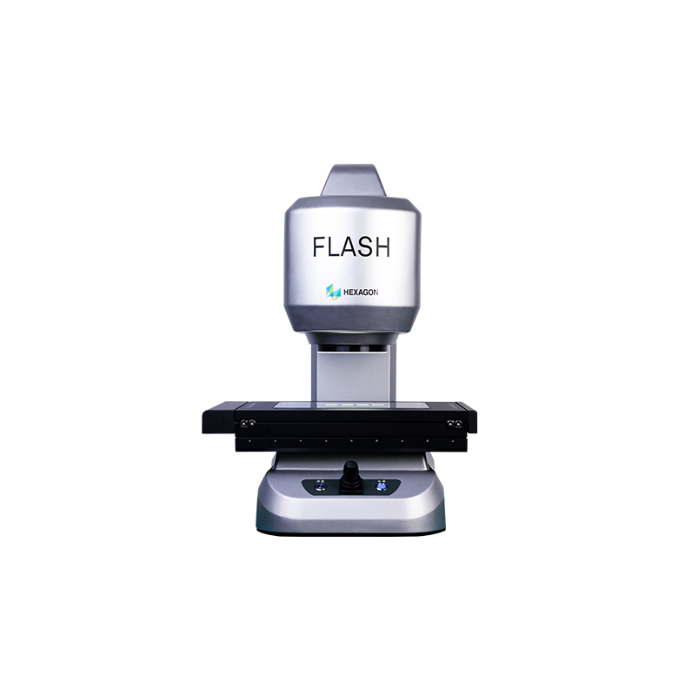

The FLASH VISION series is divided into three categories: FT, FM, and FL, meeting the measurement needs of different sizes; Large aperture and high depth of view, achieving clear and distortion free imaging in the full field of view; Can be configured with various lighting options such as contour light, coaxial light, ring light, etc; Dual field of view meets both high-precision and ultra large field of view for rapid measurement.
· A measurement instrument that uses high-resolution telecentric optical lenses, combines high-precision image analysis algorithms, and integrates functions such as one click flash measurement and induction measurement.
· The instrument can automatically locate measurement objects, match templates, evaluate measurements, and generate reports based on the shape of the workpiece. Simply touch the start button or induction switch to truly achieve fast and accurate measurement
· A measurement instrument that uses high-resolution telecentric optical lenses, combines high-precision image analysis algorithms, and integrates functions such as one click flash measurement and induction measurement.
· The instrument can automatically locate measurement objects, match templates, evaluate measurements, and generate reports based on the shape of the workpiece. Simply touch the start button or induction switch to truly achieve fast and accurate measurement.
· Balancing one click measurement for small size parts and fast measurement for medium size parts
· Measurement data can be exported to Excel in real-time
· Double telecentric lens
· 2000/26 megapixel black and white camera
· Measurement range 300x200x100mm
· A measurement instrument that uses high-resolution telecentric optical lenses, combines high-precision image analysis algorithms, and integrates functions such as one click flash measurement and induction measurement.
· The use of mobile platforms can achieve rapid measurement of large-sized parts.
· Balancing one click measurement for small size parts and fast measurement for medium size parts
· Configurable CWS white light probe
· Measurement data can be exported to Excel in real-time
· Telecentric lens
· 20 megapixel black and white camera
· Measurement range 400x300x150mm
· Considering both speed and accuracy, it comes standard with a 1X telephoto lens, which can be selected based on sample characteristics
· Larger magnification fixed or variable magnification lens
· By combining different light sources, flexible automatic point extraction can be achieved for surface features
· Balancing one click measurement for small-sized parts and rapid measurement for large-sized parts
· Configurable CWS white light probe
· Measurement data can be exported to Excel in real-time
· Double telecentric lens
· 20 megapixel black and white camera
