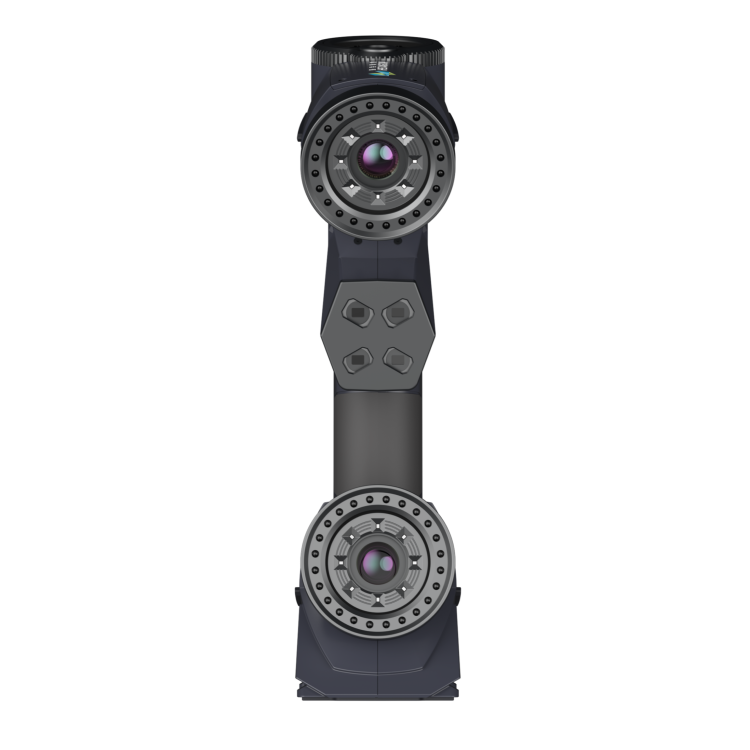

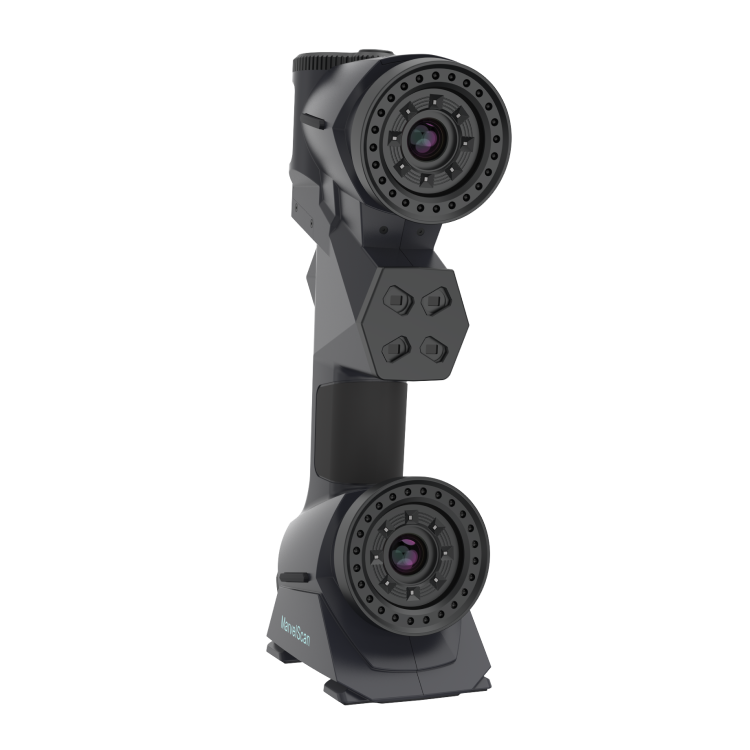

The handheld measurement scanner uses a laser beam and professional visual algorithms to quickly obtain three-dimensional data of parts. The handheld measurement scanner is a highly cost-effective portable scanning and measurement system.
The AtlaScan optical 3D scanner integrates multiple modes and functions, suitable for scanning small and medium-sized objects, plug and play, flexible and convenient.

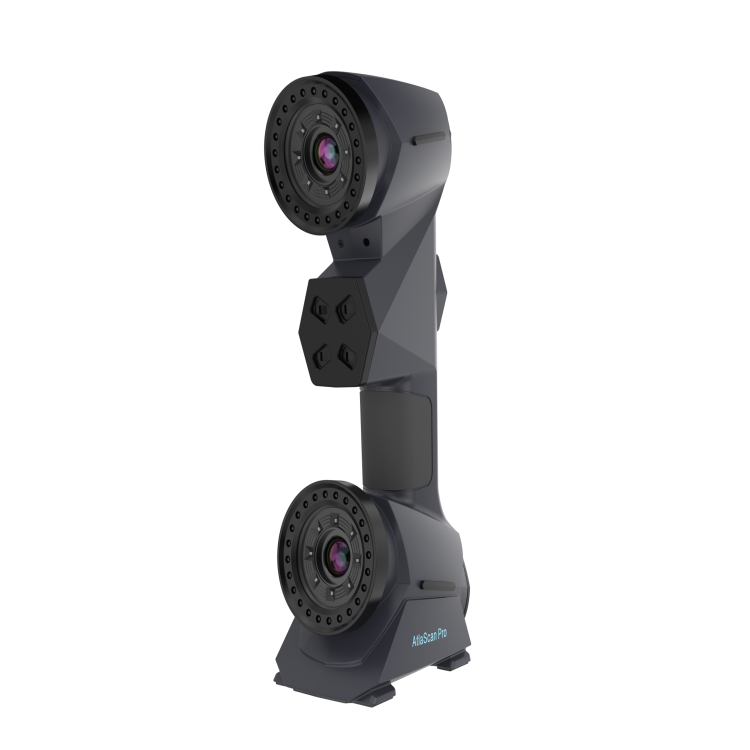

Model：AtlaScan Pro AtlaScan Max AtlaScan Ultra
AtlaScan is a revolutionary Blu ray product, with the most prominent feature being the significant upgrade of device software and hardware performance, which not only brings together all the advantages of similar products in the market, but also has many advantages such as large scanning range, ultra fast scanning speed, ultra high accuracy and resolution, and wider material adaptability, which can help users cope with various complex scanning scenarios more easily.

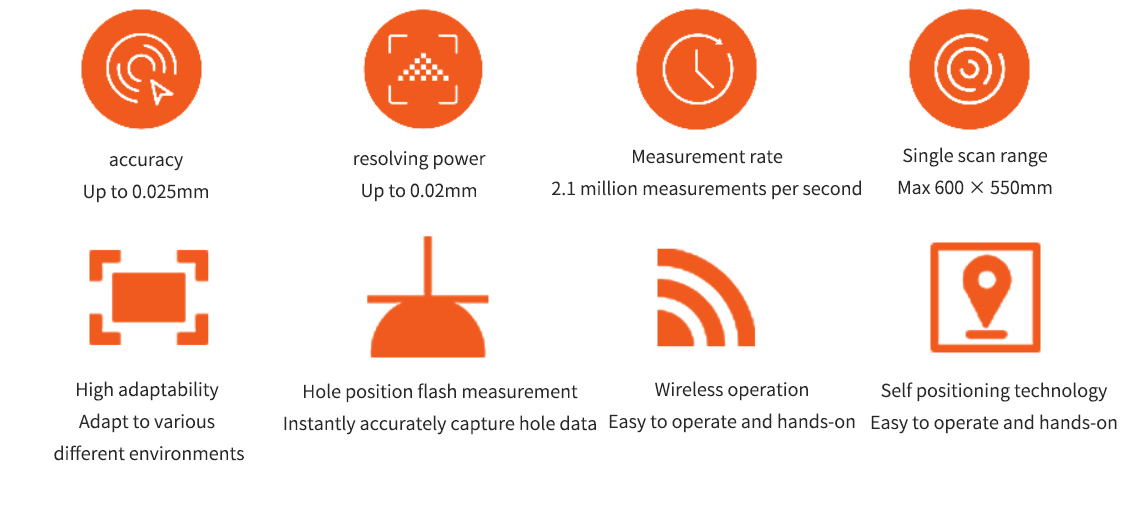

1、Rich measurement functions
· The hole position flash measurement technology can instantly obtain the position and size information of circular holes, greatly improving the adaptability and convenience of hole measurement.
· Specialized hole position measurement accessories, easy to handle hole position measurement in complex environments
· Rich feature measurement and detection functions, including point, line, surface, cylinder, cone creation, angle, flatness, roundness, cylindricity, etc., without the need for third-party point cloud processing software
2、Ultra high efficiency
· Scan format up to 600 × 550mm, quickly achieving high-precision scanning of workpieces
· The world's first 17 line scanning, 5 lasers, a total of 49 lasers
· The single frame output efficiency has been improved by more than three times compared to the previous generation, with a measurement rate of up to 2.1 million measurements per second
3、Ultra high adaptability
· Multiple modes of intelligent guidance, easy to handle black, reflective materials, and multi-color options
· Intelligent HDR dual exposure mode, fearless black and white mixing
· Volume accuracy increased by 50% compared to the previous generation, with stronger range adaptability
4、Ultra high precision scanning
· Fine mode resolution up to 0.01mm
· Super strong grid optimization function, making model details and edge effects more realistic and delicate
· Local resolution function, which preserves details while greatly reducing the space occupied by scanned data files
· 7 pairs of crossed laser lines, significantly improving scanning efficiency in fine mode
· Real time rendering during scanning process, automatic optimization of effects, and clear and visible details
1. Automotive industry: vehicle scanning, competitor analysis, automotive design, component measurement, aesthetic design, etc；
2. Tire industry: wear detection, compression deformation analysis, cross-sectional line analysis, mold quality inspection, reverse design, etc;
3. Sheet metal industry: reverse design, external dimension inspection, rebound detection analysis, hole position detection, etc;
4. Forged castings: inspection of casting molds, reverse design, assessment of clamping gaps, deformation detection, structural characteristic analysis, etc；
5. Construction machinery: quality inspection and control, reverse design, mechanical fixture design, mold adjustment, etc；
6. Cultural and museum applications: cultural relic scanning, ancient building protection, virtual restoration, mural detection, etc;
